Condensing Unit CS Series
Condensing Unit Medium-Low Temperature 1.5 - 10 HP
Condensing Units
CS Series Condensing unit with air cooling
- High efficiency condensing unit, used at medium and low temperatures. Suitable for commercial applications, freezer, mini mart cabinet, ice maker, ice cream maker
- High efficiency piston type compressor strong
- High quality axail fan motor ventilation fan kits, reduce vibration and tear off rotor problems.
- Specially designed shape is beautiful, compact and durable

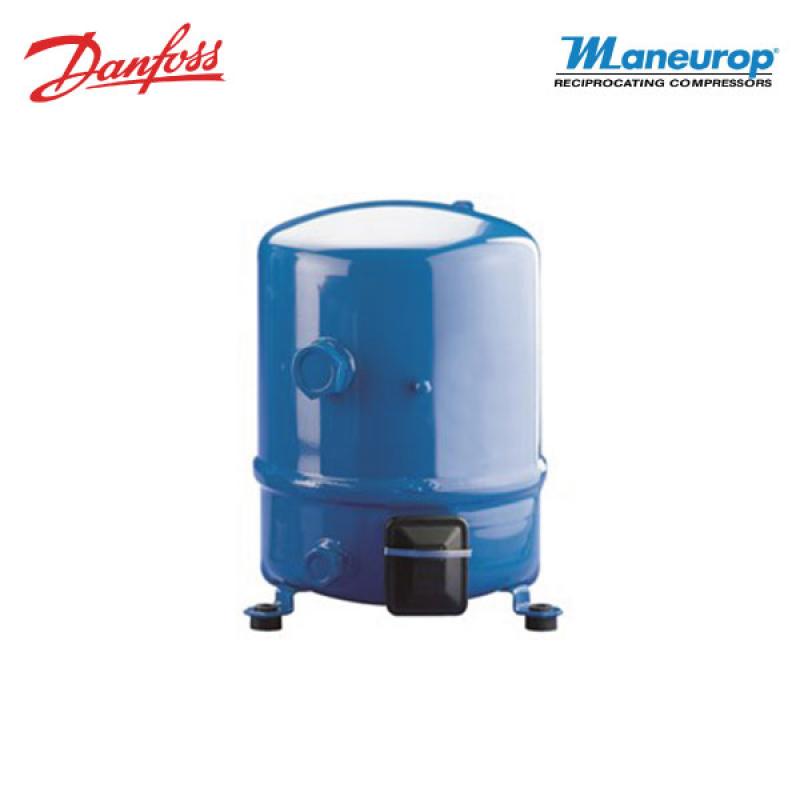

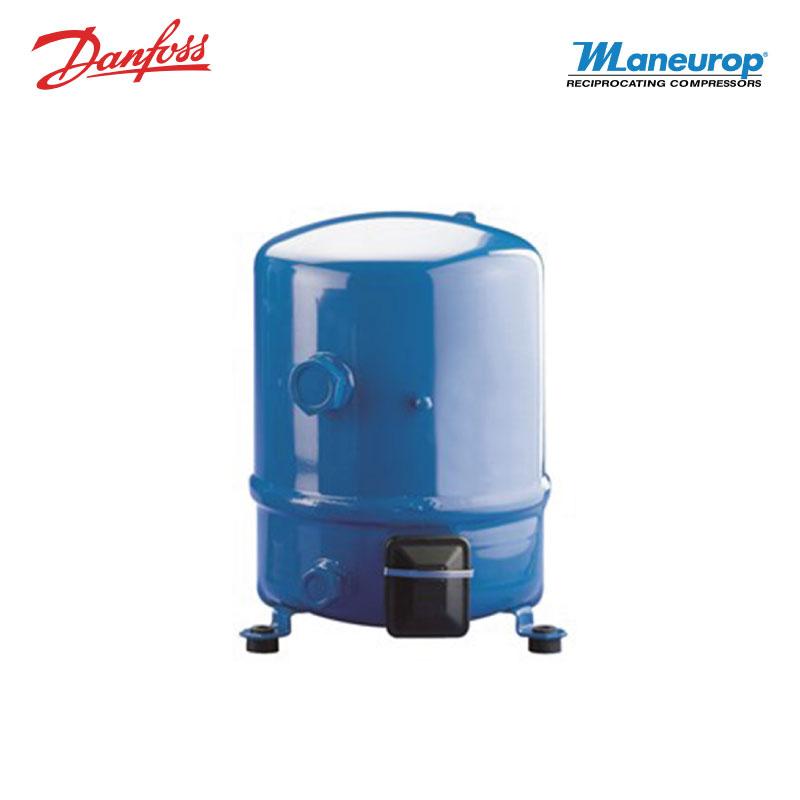

- MANEUROP Compressor
- TECUMSEH Compressor
Contact Us
MANEUROP Compressor R-22 Medium Temperature Application
Remark: 380V/3Ph/50Hz
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
MANEUROP Compressor R-404A Medium Temperature Application
Remark: 380V/3Ph/50Hz
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
MANEUROP Compressor R-404A/R-507 Low Temperature Application
Remark: 380V/3Ph/50Hz
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
TECUMSEH Compressor R-22 Medium Temperature Application
Remark: 380V/3Ph/50Hz
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
TECUMSEH Compressor R-404A/R-507 Low Temperature Application
Remark: 380V/3Ph/50Hz
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
| Model | HP |
MCC/LRA (A) |
Capacity (Watt) | Fan Motor | ||
| Te.-15°C | Te.5°C | Blade x Qty. (mm.) | FLA x Qty. (A) | |||
| CSM 18 | 1.5 | 5/20 | 1275 | 2271 | 350 x 1 | 0.4 x 1 |
| CSM 22 | 1.8 | 6/16 | 1805 | 2140 | 350 x 1 | 0.4 x 1 |
| CSM 28 | 2.3 | 7.5/23 | 2829 | 4518 | 450 x 1 | 0.6 x 1 |
| CSM 32 | 2.7 | 8/25 | 2984 | 4902 | 500 x 1 | 1.0 x 1 |
| CSM 36 | 3 | 9/30 | 3750 | 5928 | 500 x 1 | 1.0 x 1 |
| CSM 40 | 3.3 | 10/38 | 4051 | 6512 | 500 x 1 | 1.0 x 1 |
| CSM 44 | 3.7 | 9.5/42 | 3703 | 6297 | 500 x 1 | 1.0 x 1 |
| CSM 50 | 4 | 12/42 | 4404 | 7388 | 500 x 1 | 1.0 x 1 |
| CSM 56 | 4.7 | 12/60 | 4906 | 8191 | 450 x 2 | 0.6 x 2 |
| CSM 64 | 5.3 | 15/67 | 5940 | 9654 | 500 x 2 | 1.0 x 2 |
| CSM 72 | 6 | 15.5/80 | 6620 | 10975 | 450 x 2 | 0.6 x 2 |
| CSM 80 | 6.7 | 18/80 | 7937 | 12821 | 500 x 2 | 1.0 x 2 |
| CSM 100 | 8.3 | 22/90 | 8687 | 14167 | 500 x 2 | 1.0 x 2 |
| CSM 125 | 10.4 | 27/105 | 11543 | 18421 | 500 x 2 | 1.0 x 2 |
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
MANEUROP Compressor R-404A Medium Temperature Application
| Model | HP | MCC/LRA (A) | Capacity (Watt) | Fan Motor | ||
| Te.-15°C | Te.5°C | Blade x Qty. (mm.) | FLA x Qty. (A) | |||
| CSM 18Z | 1.5 | 5/20 | 1437 | 2434 | 350 x 1 | 0.4 x 1 |
| CSM 22Z | 1.8 | 6/16 | 2029 | 3128 | 350 x 1 | 0.4 x 1 |
| CSM 28Z | 2.3 | 7.5/23 | 2590 | 4090 | 450 x 1 | 0.6 x 1 |
| CSM 32Z | 2.7 | 8/25 | 2858 | 4615 | 500 x 1 | 1.0 x 1 |
| CSM 36Z | 3 | 9/30 | 3460 | 5439 | 500 x 1 | 1.0 x 1 |
| CSM 40Z | 3.3 | 10/38 | 3835 | 6092 | 500 x 1 | 1.0 x 1 |
| CSM 44Z | 3.7 | 9.5/42 | 3967 | 6515 | 500 x 1 | 1.0 x 1 |
| CSM 50Z | 4 | 12/42 | 4640 | 7503 | 500 x 1 | 1.0 x 1 |
| CSM 56Z | 4.7 | 12/60 | 5310 | 8577 | 450 x 2 | 0.6 x 2 |
| CSM 64Z | 5.3 | 15/67 | 6278 | 9907 | 500 x 2 | 1.0 x 2 |
| CSM 72Z | 6 | 15.5/80 | 7073 | 11103 | 450 x 2 | 0.6 x 2 |
| CSM 80Z | 6.7 | 18/80 | 8132 | 12708 | 500 x 2 | 1.0 x 2 |
| CSM 100Z | 8.3 | 22/90 | 9173 | 14710 | 500 x 2 | 1.0 x 2 |
| CSM 125Z | 10.4 | 27/105 | 11800 | 18362 | 500 x 2 | 1.0 x 2 |
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
MANEUROP Compressor R-404A/R-507 Low Temperature Application
| Model | HP | MCC/LRA (A) | Capacity (Watt) | Fan Motor | ||
| Te.-35°C | Te.-20°C | Blade x Qty. (mm.) | FLA x Qty. (A) | |||
| CSL 48 | 1.8 | 4.8/16 | 790 | 1910 | 450 x 1 | 0.6 x 1 |
| CSL 68 | 2.3 | 8.4/25 | 1260 | 2940 | 500 x 1 | 1.0 x 1 |
| CSL 96 | 3.5 | 10.1/32 | 1680 | 3850 | 500 x 1 | 1.0 x 1 |
| CSL 108 | 3.75 | 12.1/45 | 2000 | 4640 | 500 x 2 | 1.0 x 2 |
| CSL 136 | 4 | 14.3/51 | 2640 | 5860 | 500 x 2 | 1.0 x 2 |
| CSL 215 | 7 | 22.3/74 | 3870 | 9060 | 500 x 2 | 1.0 x 2 |
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
TECUMSEH Compressor R-22 Medium Temperature Application
| Model | HP | RLA/MCC (A) | Capacity (Watt) | Fan Motor | ||
| Te.-15°C | Te.5°C | Blade x Qty. (mm.) | FLA x Qty. (A) | |||
| CSM 524 | 2 | 3.9/4.9 | 2145 | 3488 | 450 x 1 | 0.6 x 1 |
| CSM 531 | 2.5 | 4.8/6.6 | 2986 | 4789 | 500 x 1 | 1.0 x 1 |
| CSM 540 | 3 | 6.1/8.4 | 3485 | 6101 | 500 x 1 | 1.0 x 1 |
| CSM 546 | 4 | 6.6/10 | 3736 | 6387 | 500 x 1 | 1.0 x 1 |
| CSM 553 | 4.5 | 7.4/12 | 4436 | 7524 | 500 x 1 | 1.0 x 1 |
| CSM 561 | 5 | 9/15 | 5160 | 8667 | 450 x 2 | 0.6 x 2 |
| CSM 568 | 6 | 9.6/15.6 | 5818 | 9768 | 500 x 2 | 1.0 x 2 |
| CSM 573 | 6.5 | 11/18 | 6394 | 10446 | 500 x 2 | 1.0 x 2 |
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
TECUMSEH Compressor R-404A/R-507 Low Temperature Application
| Model | HP | RLA/MCC (A) | Capacity (Watt) | Fan Motor | ||
| Te.-35°C | Te.-20°C | Blade x Qty. (mm.) | FLA x Qty. (A) | |||
| CSL 480 | 2 | 2.8/4.8 | 769 | 1965 | 450 x 1 | 0.6 x 1 |
| CSL 511 | 2.5 | 3.7/5 | 1032 | 2780 | 500 x 1 | 1.0 x 1 |
| CSL 516 | 4 | 4.6/9.61 | 1579 | 3936 | 500 x 1 | 1.0 x 1 |
| CSL 522 | 5.5 | 6.1/12.5 | 1843 | 4855 | 500 x 2 | 1.0 x 2 |
Capacity at indicated Evaporator Temp. and Ambient Temp. at 38°C
