Air-Cooled Condenser THL-THLD Series (Horizontal)
Air-Cooled Condenser Heat Rejection 56 - 252 kW
Air Cooled Condensers
Contact Us
| Model |
Heat Rejection (kW) |
Connection (Inch) | Fan Motor | Size | ||||
| In | Out | Blade x Qty. (mm.) | Current x Qty. (A) | W | L | H | ||
| THL 54 H | 59.27 | 1 3/8 | 7/8 | 630 x 2 | 1.95 x 2 | 1020 | 2035 | 870 |
| THL 56 H | 66.75 | 1 3/8 | 7/8 | 630 x 2 | 1.95 x 2 | 1020 | 2035 | 870 |
| THL 62 H | 88.06 | 1 5/8 | 1 1/8 | 630 x 3 | 1.95 x 3 | 1020 | 3052 | 870 |
| THL 64 H | 102.22 | 1 5/8 | 1 1/8 | 630 x 3 | 1.95 x 3 | 1020 | 3052 | 870 |
| THL 68 H | 118.58 | 2 1/8 | 1 3/8 | 630 x 4 | 1.95 x 4 | 1020 | 4070 | 870 |
| THL 72 H | 136.20 | 2 1/8 | 1 3/8 | 630 x 4 | 1.95 x 4 | 1020 | 4070 | 870 |
| THL 54 EH | 59.27 | 1 3/8 | 7/8 | 630 x 2 | 1.95 x 2 | 1020 | 2035 | 870 |
| THL 56 EH | 66.75 | 1 3/8 | 7/8 | 630 x 2 | 1.95 x 2 | 1020 | 2035 | 870 |
| THL 62 EH | 88.06 | 1 5/8 | 1 1/8 | 630 x 3 | 1.95 x 3 | 1020 | 3052 | 870 |
| THL 64 EH | 102.22 | 1 5/8 | 1 1/8 | 630 x 3 | 1.95 x 3 | 1020 | 3052 | 870 |
| THL 68 EH | 118.58 | 2 1/8 | 1 3/8 | 630 x 4 | 1.95 x 4 | 1020 | 4070 | 870 |
| THL 72 EH | 136.20 | 2 1/8 | 1 3/8 | 630 x 4 | 1.95 x 4 | 1020 | 4070 | 870 |
| THL 54 V EC | 58.07 | 1 3/8 | 7/8 | 630 x 2 | 1.60 x 2 | 1020 | 2035 | 870 |
| THL 56 V EC | 66.22 | 1 3/8 | 7/8 | 630 x 2 | 1.60 x 2 | 1020 | 2035 | 870 |
| THL 62 V EC | 87.33 | 1 5/8 | 1 1/8 | 630 x 3 | 1.60 x 3 | 1020 | 3052 | 870 |
| THL 64 V EC | 99.57 | 1 5/8 | 1 1/8 | 630 x 3 | 1.60 x 3 | 1020 | 3052 | 870 |
| THL 68 V EC | 116.26 | 2 1/8 | 1 3/8 | 630 x 4 | 1.60 x 4 | 1020 | 4070 | 870 |
| THL 72 V EC | 132.70 | 2 1/8 | 1 3/8 | 630 x 4 | 1.60 x 4 | 1020 | 4070 | 870 |
| Model |
Heat Rejection (kW) |
Connection (Inch) | Fan Motor | Size | ||||
| In | Out | Blade x Qty. (mm.) | Current x Qty. (A) | W | L | H | ||
| THLD 68 H | 118.54 | 1 3/8 | 7/8 | 630 x 4 | 1.95 x 4 | 2040 | 2035 | 870 |
| THLD 72 H | 133.50 | 1 3/8 | 7/8 | 630 x 4 | 1.95 x 4 | 2040 | 2035 | 870 |
| THLD 82 H | 176.11 | 1 5/8 | 1 1/8 | 630 x 6 | 1.95 x 6 | 2040 | 3052 | 870 |
| THLD 87 H | 204.45 | 1 5/8 | 1 1/8 | 630 x 6 | 1.95 x 6 | 2040 | 3052 | 870 |
| THLD 96 H | 237.16 | 2 1/8 | 1 3/8 | 630 x 8 | 1.95 x 8 | 2040 | 4070 | 870 |
| THLD 103 H | 272.40 | 2 1/8 | 1 3/8 | 630 x 8 | 1.95 x 8 | 2040 | 4070 | 870 |
| THLD 68 EH | 118.54 | 1 3/8 | 7/8 | 630 x 4 | 1.95 x 4 | 2040 | 2035 | 870 |
| THLD 72 EH | 133.50 | 1 3/8 | 7/8 | 630 x 4 | 1.95 x 4 | 2040 | 2035 | 870 |
| THLD 82 EH | 176.11 | 1 5/8 | 1 1/8 | 630 x 6 | 1.95 x 6 | 2040 | 3052 | 870 |
| THLD 87 EH | 204.45 | 1 5/8 | 1 1/8 | 630 x 6 | 1.95 x 6 | 2040 | 3052 | 870 |
| THLD 96 EH | 237.16 | 2 1/8 | 1 3/8 | 630 x 8 | 1.95 x 8 | 2040 | 4070 | 870 |
| THLD 103 EH | 272.40 | 2 1/8 | 1 3/8 | 630 x 8 | 1.95 x 8 | 2040 | 4070 | 870 |
| THLD 68 H EC | 116.14 | 1 3/8 | 7/8 | 630 x 4 | 1.60 x 4 | 2040 | 2035 | 870 |
| THLD 72 H EC | 132.44 | 1 3/8 | 7/8 | 630 x 4 | 1.60 x 4 | 2040 | 2035 | 870 |
| THLD 82 H EC | 174.66 | 1 5/8 | 1 1/8 | 630 x 6 | 1.60 x 3 | 2040 | 3052 | 870 |
| THLD 87 H EC | 199.16 | 1 5/8 | 1 1/8 | 630 x 6 | 1.60 x 3 | 2040 | 3052 | 870 |
| THLD 96 H EC | 232.53 | 2 1/8 | 1 3/8 | 630 x 8 | 1.60 x 4 | 2040 | 4070 | 870 |
| THLD 103 H EC | 265.40 | 2 1/8 | 1 3/8 | 630 x 8 | 1.60 x 4 | 2040 | 4070 | 870 |
H = มอเตอร์พัดลมแบบธรรมดา E = มอเตอร์พัดลมแบบคุณภาพสูง EC = มอเตอร์พัดลมแบบประหยัดพลังงาน
REMARK: คำนวณค่า Heat Rejection ที่เงื่อนไข TD=12K, SH5K, SC5K
HR (Heat Rejection) หากต้องการหาค่า HR จากสารทำความเย็นชนิดอื่น
HR @ 12K TD = HR x 1.00 R-22 = HR x 1.00
HR @ 10K TD = HR x 0.82 R-134A = HR x 0.97
HR @ 8K TD = HR x 062 R-407C = HR x 1.04

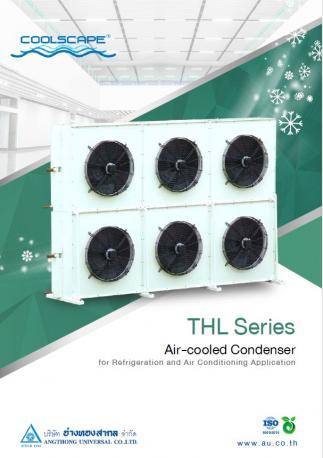

THL-THLD Catalogue
